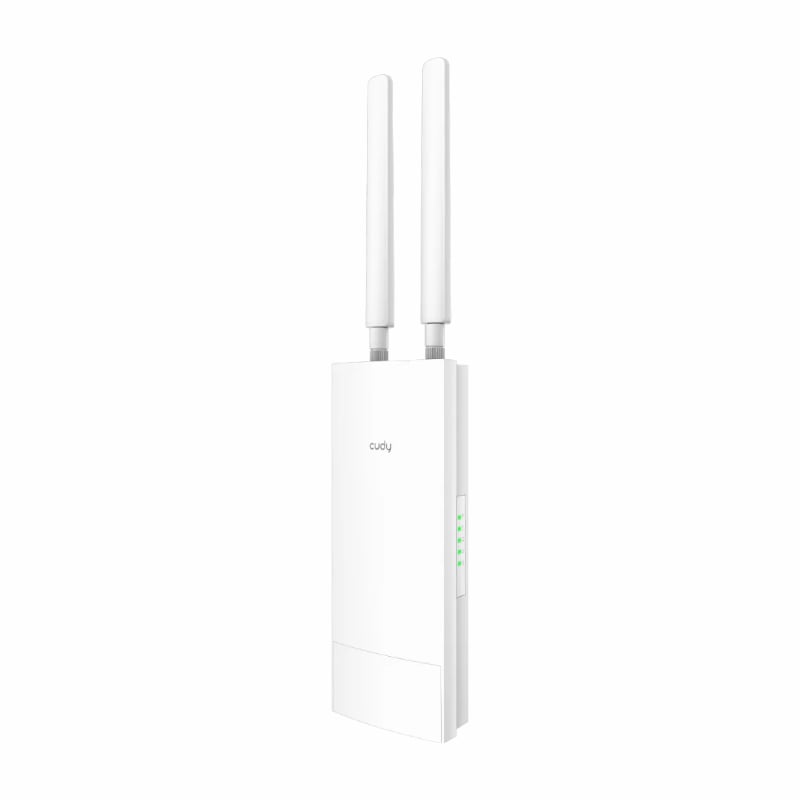

Cudy AX3000 2.5G Dual Band Ceiling Access Point- Outdoor

Cudy AX3000 2.5G Dual Band Ceiling Access Point- Outdoor

Regular price R 1,649.00
Regular price Sale price R 1,649.00
Sold out
Shipping calculated at checkout.

Availability9 in stock

SKU: AP3000 OUTDOOR

Shipping & Returns

We understand you want your items quickly!

All orders are processed and prepared for shipping within 24 hours of the order being successfully processed online.

The Courier Guy typically collects the parcel from us within this 24-hour window.

Estimated Delivery Times:

Once your order has been collected by The Courier Guy, the estimated delivery times are as follows:

Area TypeEstimated Delivery TimeDomestic / Major Areas1 – 3 working daysRural / Outlying Areas(e.g., Farms, remote locations)3 – 6 working days

Returns & Refunds

We offer a 30-day return policy. This means you have 30 days after receiving your item to request a return if you have simply changed your mind.

Eligibility: To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

Process: To start a return, contact us at admin@tek-zone.co.za.

For more details please click here ---> REFUND POLICY

View full product details

The Cudy AX3000 2.5G Dual Band Ceiling Access Point - Outdoor is an excellent choice for converting LAN networks into high-speed, dependable wireless networks. This pole or wall-mounted WiFi 6 AP with eFEM provides excellent range performance, making it ideal for high-density environments like parks, farms, and parking lots. Its robust IP65 casing, Power over Ethernet (PoE), and Cudy Mesh features make it ideal for outdoor use. It achieves total throughput of up to 3 Gbps by using the highest 160 MHz channel width and 1024-QAM modulation. OFDMA and MU-MIMO technologies can support over 100 devices with low latency, with a maximum capacity of 512 devices.

The AP's five power amplifiers and 3+2 antenna structure provide excellent signal navigation through obstacles. The IP65 case protects it from rain and dust, and the 6 kV Lightning/Surge and 8 kV ESD protection ensures stability during thunderstorms. It can operate at temperatures ranging from -40°F to 158°F (-40°C to 70°C). Mesh technology provides a unified Wi-Fi name across the premises, allowing for seamless roaming without the need for manual switching. Connecting the PoE adapter's LAN port to various Cudy devices integrates the AP into the Mesh network, with the option of using Ethernet backhaul after pairing. Adaptive Routing improves network performance by switching to better paths when the original ones become congested.

FEATURES:

  •  IP65, -40~70°C (-40~158°F), 6kV Surge
  • 5-Stream Dual-Band Wi-Fi 6
  • 1× Shielded GbE (PoE In)
  • 802.3at/af, Passive PoE
  • Watchdog, Schedule Reboot
  • Max 320 m (1050 ft) Range
  • 200 Connected Devices

SPECIFICATIONS:

  • CPU: 1.3 GHz Dual-Core CPU
  • Chipset: MT7981BA
  • Flash: 128 MB (1 Gbit) NAND
  • DDR: 256 MB (2 Gbit) DDR3
  • Wireless:
  • 5 GHz Wi-Fi Speed: 2402Mbps
  • Wi-Fi Bands: EU + DFS
  • 2.4 GHz Wi-Fi Speed: 574 Mbps
  • 5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • Wi-Fi Antennas: 1× Internal+2× External
  • 5 GHz Antenna Gain Max: 6 dBi
  • 2.4 GHz Antenna Gain Max: 4 dBi
  • FEM or PA/LNA: 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power
  • Range Performance:
  • Max: 320 m (1050 ft)
  • Park: 280 m (919 ft)
  • Street: 70 m (230 ft)
  • Woods: 40 m (131 ft)
  • Interfaces:
  • 2.5G RJ45 Ports: 1
  • Ethernet Notes: Accepts PoE powering
  • LED: System
  • Physical Buttons: Reset Button, WPS Button
  • Power Input: PoE via Ethernet Port
  • Power:
  • Power Methods: 802.3at PoE/Passive PoE
  • Passive PoE: 48 ~ 57V
  • Power Adapter: Input: 100 ~ 240 V, 50/60 Hz ACOutput: 48V Passive PoE
  • Max Power Consumption (W): 18 W
  • Idle Power Consumption (W): 5 W
  • Reliability:
  • System Stability: Watchdog
  • ESD Air Protection: 4kV
  • ESD Contact Protection: 8kV
  • Environment: Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Installation: Wall-Mounting, Ceiling-Mounting

WHAT’S IN THE BOX:

  • Cudy AX3000 2.5G Dual Band Ceiling Access Point Outdoor – White x1
  • Power Adapter x1
