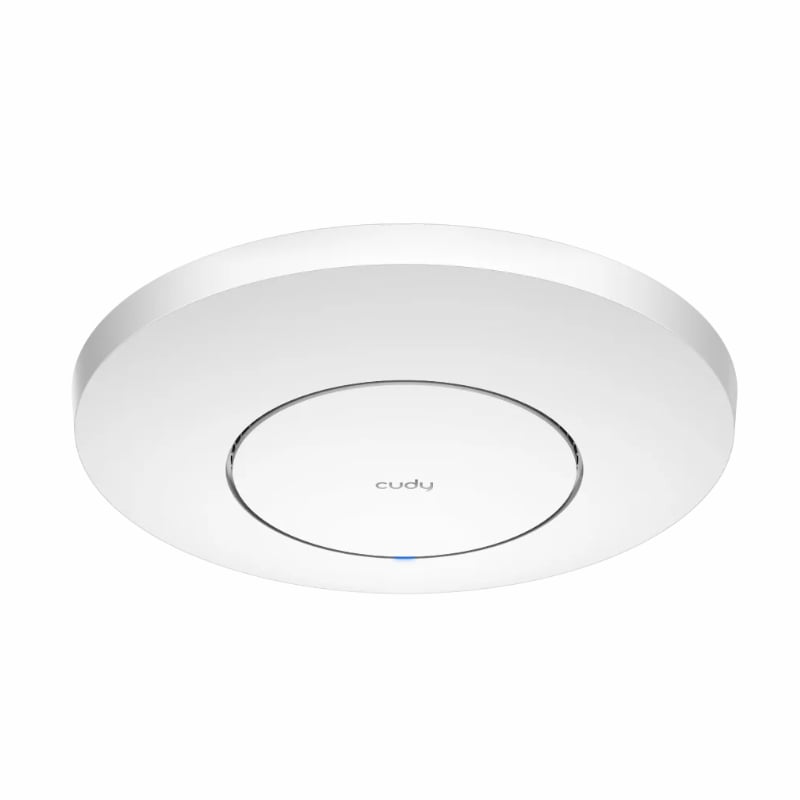

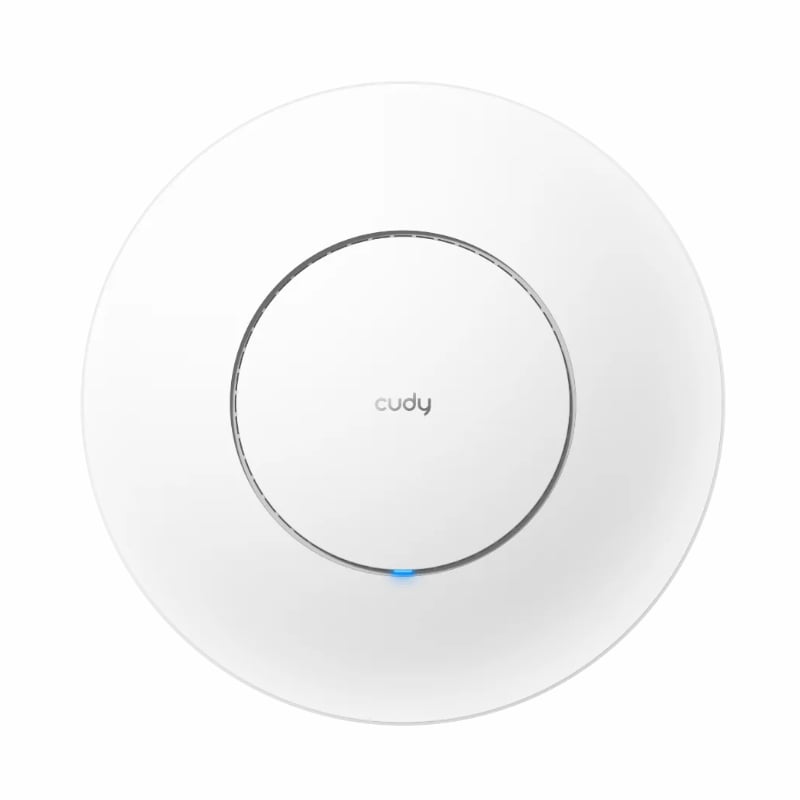

Cudy AX3000 2.5G Dual Band Ceiling Access Point

Cudy AX3000 2.5G Dual Band Ceiling Access Point

Regular price R 1,299.00
Regular price Sale price R 1,299.00
Sold out
Shipping calculated at checkout.

Availability6 in stock

SKU: AP3000

Shipping & Returns

We understand you want your items quickly!

All orders are processed and prepared for shipping within 24 hours of the order being successfully processed online.

The Courier Guy typically collects the parcel from us within this 24-hour window.

Estimated Delivery Times:

Once your order has been collected by The Courier Guy, the estimated delivery times are as follows:

Area TypeEstimated Delivery TimeDomestic / Major Areas1 – 3 working daysRural / Outlying Areas(e.g., Farms, remote locations)3 – 6 working days

Returns & Refunds

We offer a 30-day return policy. This means you have 30 days after receiving your item to request a return if you have simply changed your mind.

Eligibility: To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

Process: To start a return, contact us at admin@tek-zone.co.za.

For more details please click here ---> REFUND POLICY

View full product details

The Cudy AX3000 2.5G Dual Band Ceiling Access Point is an effective solution for transforming LAN networks into high-speed, dependable wireless networks. It has dual-band Wi-Fi 6 and supports both 2.4GHz and 5GHz frequencies, with speeds of up to 867Mbps on the 5GHz band. With a 1.3 GHz dual-core CPU and plenty of RAM, it uses UL/DL MU-MIMO and OFDMA technologies to reduce transmission latency, ensuring smooth performance for multiple devices. Its five antennas, 3+2 structure, and beamforming technology improve signal strength and coverage by directing the signal to connected devices.

The shielded 2.5G Ethernet port enables simultaneous streaming by multiple devices without buffering, even in high-interference environments. PoE support simplifies installation by eliminating the need for extra power cables. Customisable login pages boost brand awareness, and the device's 130 m² coverage and capacity for 200 devices make it ideal for high-density environments. Convenient features such as Watchdog, Schedule Reboot, and easy mounting increase its appeal to businesses looking for reliable, high-performance wireless networking solutions.

FEATURES:

  • 5-Stream Dual-Band Wi-Fi 6
  • 1× Shielded 2.5GbE PoE In
  • 802.3at, Passive PoE, DC
  • Watchdog, Schedule Reboot
  • Covers 130 m² (1,400 ft²) with 5-Stream
  • 200 Connected Devices

SPECIFICATIONS:

  • CPU: 1.3 GHz Dual-Core CPU
  • Chipset: MT7981BA
  • Flash: 256 MB (2 Gbit) NAND
  • DDR: 512 MB (4 Gbit) DDR4
  • Wireless:
  • 5 GHz Wi-Fi Speed: 2402Mbps
  • Wi-Fi Bands: EU + DFS, US + DFS
  • 2.4 GHz Wi-Fi Speed: 574 Mbps
  • 5 GHz Wi-Fi Streams: 3T3R (3×3 MIMO)
  • 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
  • Wi-Fi Antennas: 5× Internal
  • 5 GHz Antenna Gain Max: 5.6 dBi
  • 2.4 GHz Antenna Gain Max: 4.8 dBi
  • FEM or PA/LNA: 5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power
  • Range Performance: Max: 130 m (427 ft)
  • Interfaces:
  • 2.5G RJ45 Ports: 1
  • Ethernet Notes: Accepts PoE powering
  • LED: System
  • Physical Buttons: Reset Button
  • Power Input: DC Jack, PoE via Ethernet Port
  • Power:
  • Power Methods: DC, 802.3at/af PoE, Passive PoE
  • DC: 12V 1.5A
  • Passive PoE: 48 ~ 57V
  • Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC/Output: 12V 1.5A DC
  • Max Power Consumption (W): 12 W (48 V PoE) 12 W (DC)
  • Idle Power Consumption (W): 6.1 (48 V PoE) 6.1 W (DC)
  • Reliability:
  • System Stability: Watchdog
  • ESD Air Protection: 4kV
  • ESD Contact Protection: 8kV
  • Environment: Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

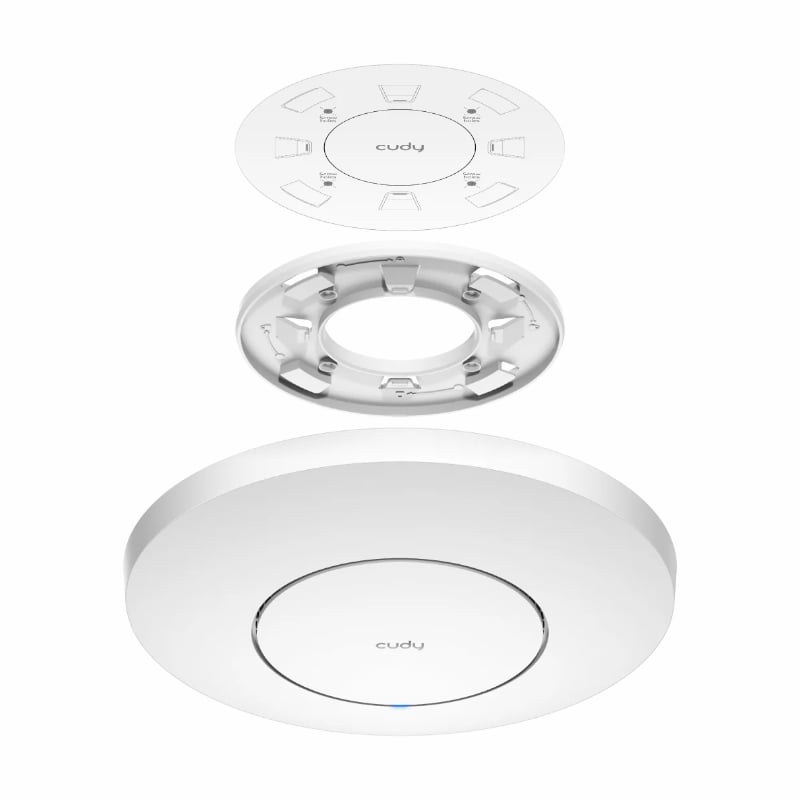

  • Installation: Wall-Mounting, Ceiling-Mounting

WHAT’S IN THE BOX:

  • Cudy AX3000 Dual-Band Ceiling Access Point – White x1
